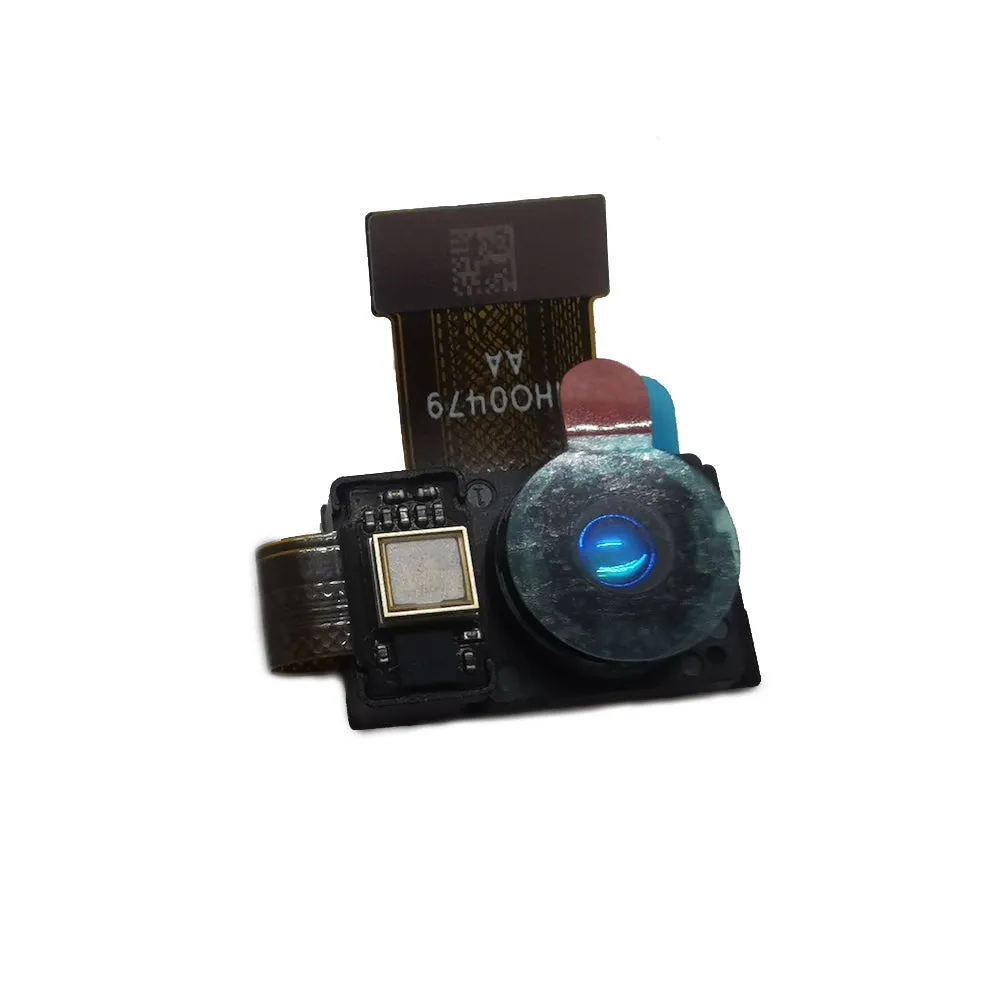

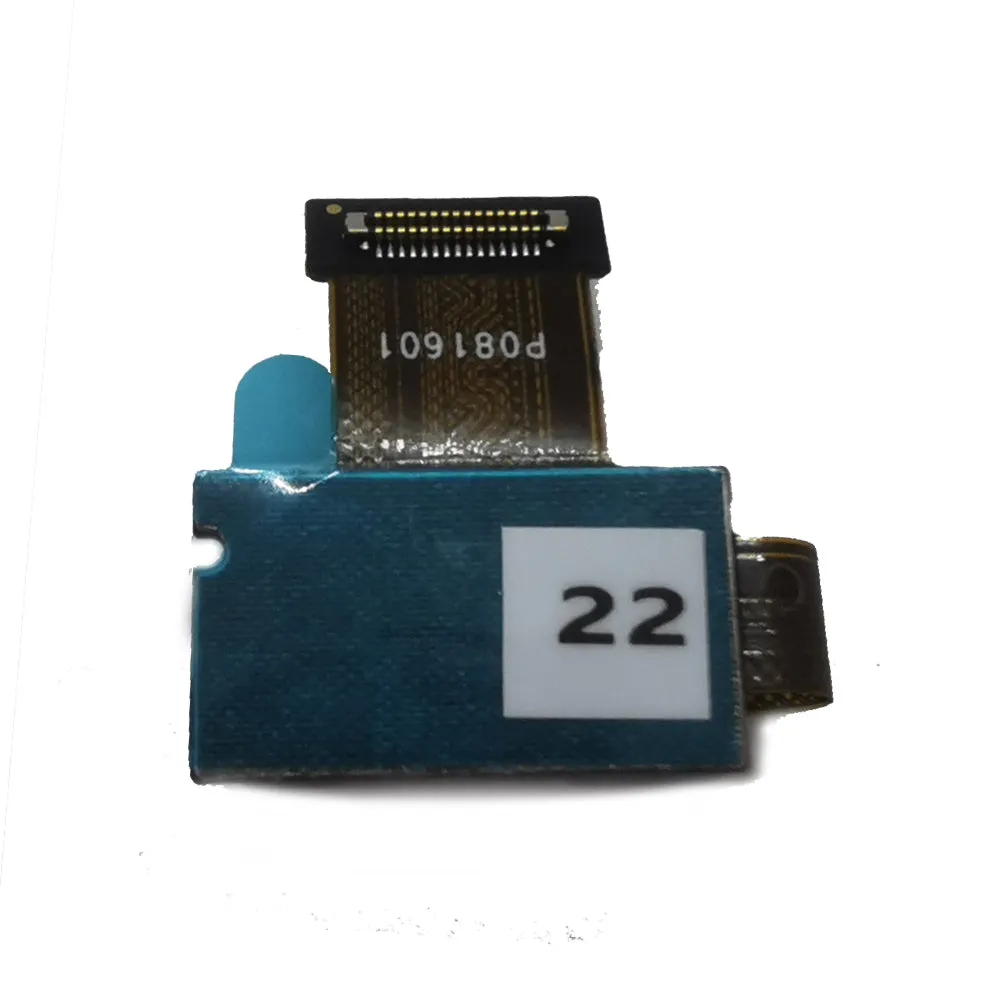

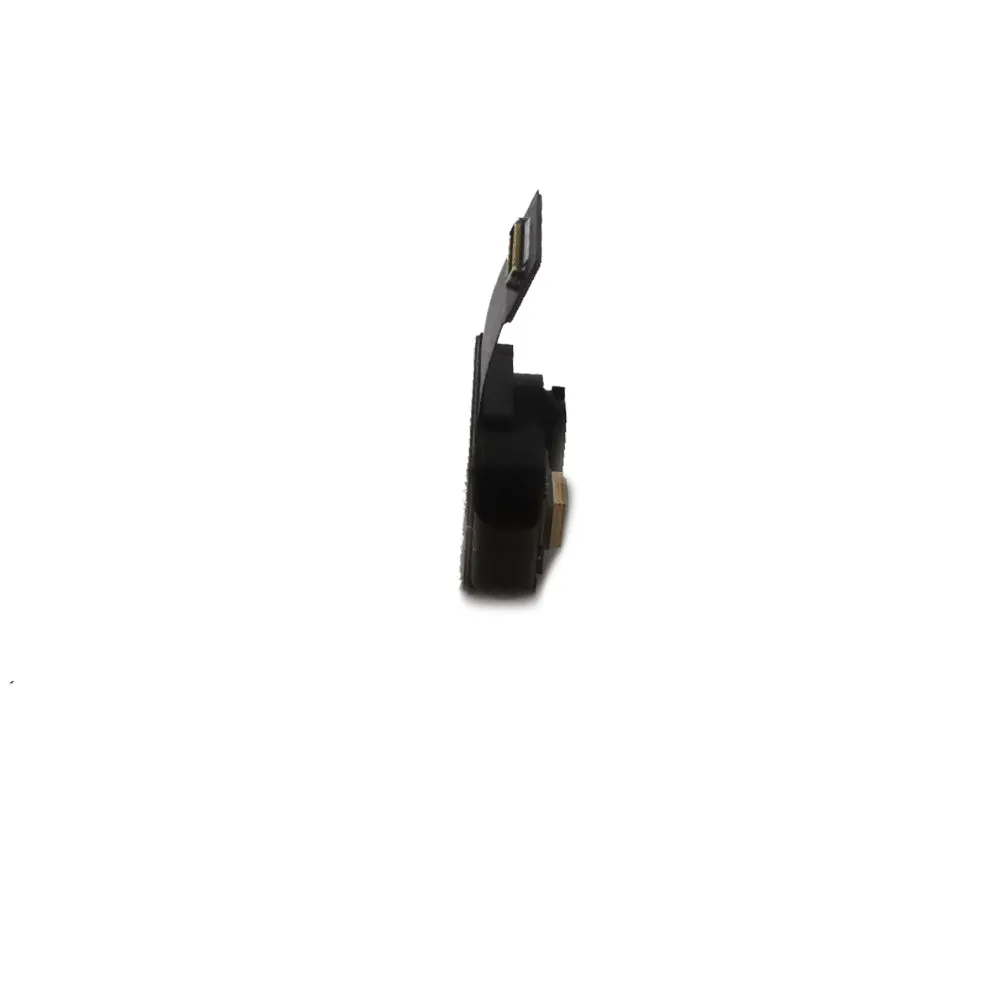

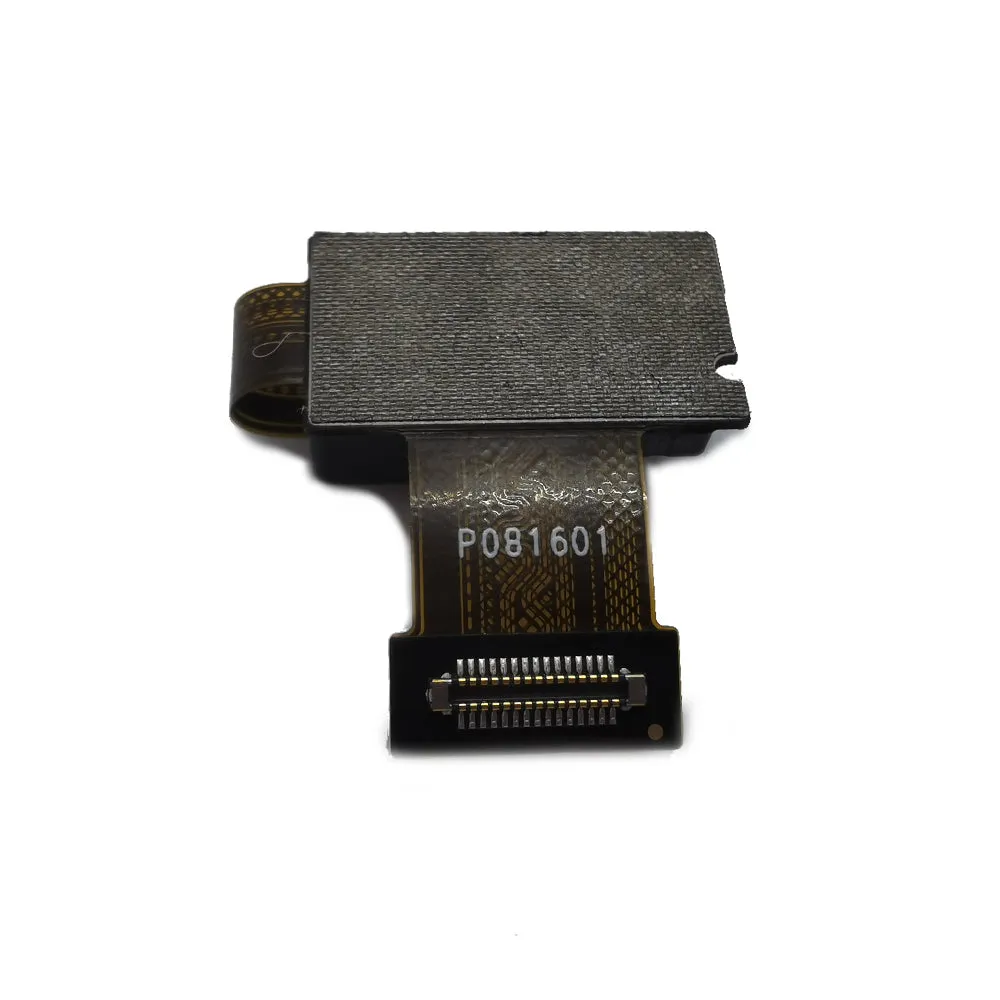

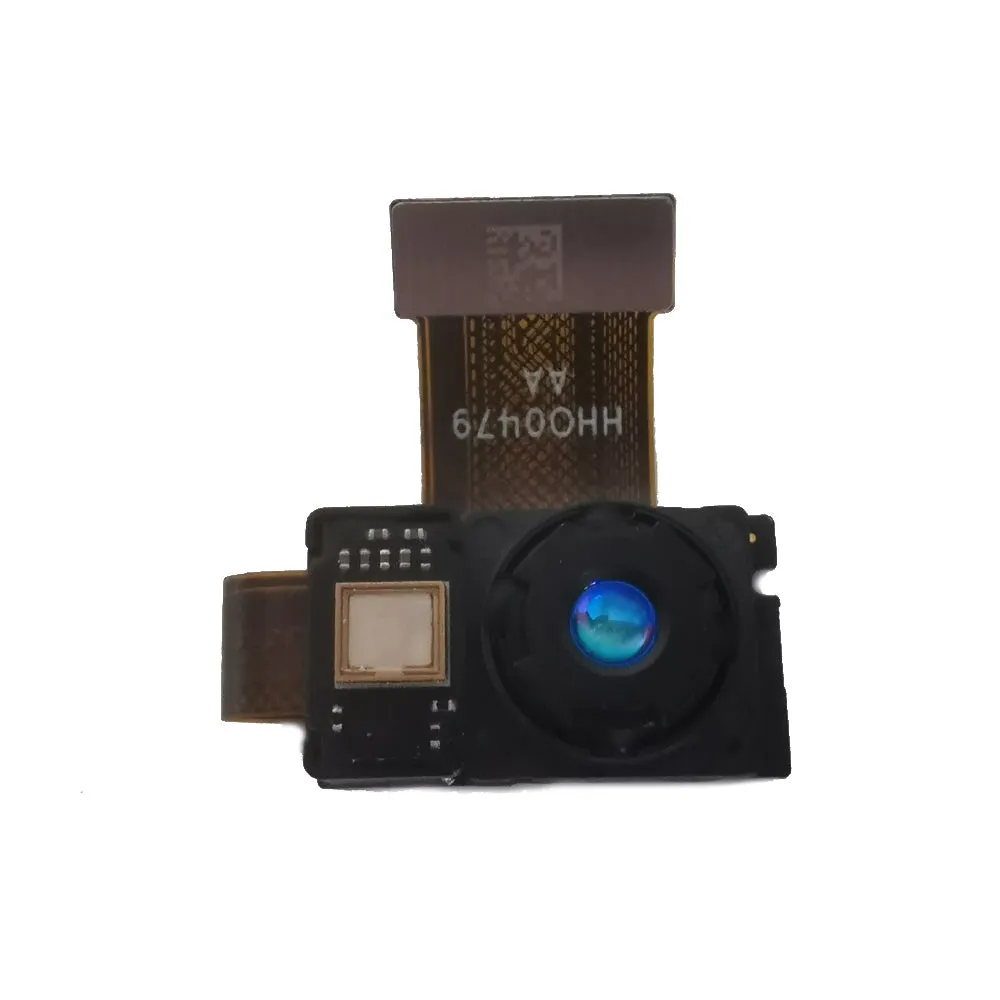

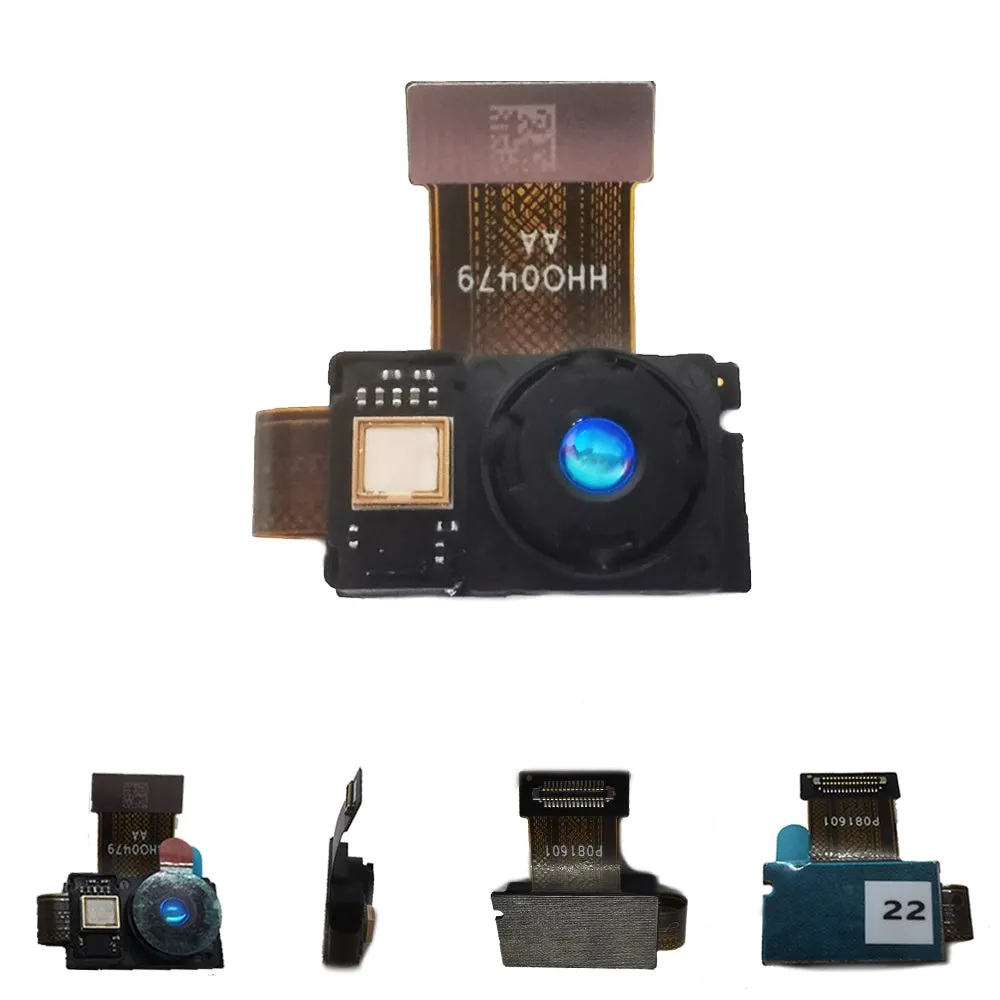

Synexens 3D camera of ToF sensor Soild-state Lidar_CS20-MIPI module (hereafter referred to as "the module") consists of an RX equipped with a 640*480 resolution ToF image sensor and a TX operating at a 940nm wavelength. Utilizing ToF technology, it acquires three-dimensional information of objects and spaces, boasting excellent performance characteristics such as long-range detection and low power consumption. Additionally, the module employs a standard MIPI-CSI2 interface to output RAW data.

 · Technical Parameter

Technical Parameter
Depth resolution	640x480/320x240
Measuring range	0.1-5m, indoor
VCSEL wavelength	940nm
Precision	1% @ white wall

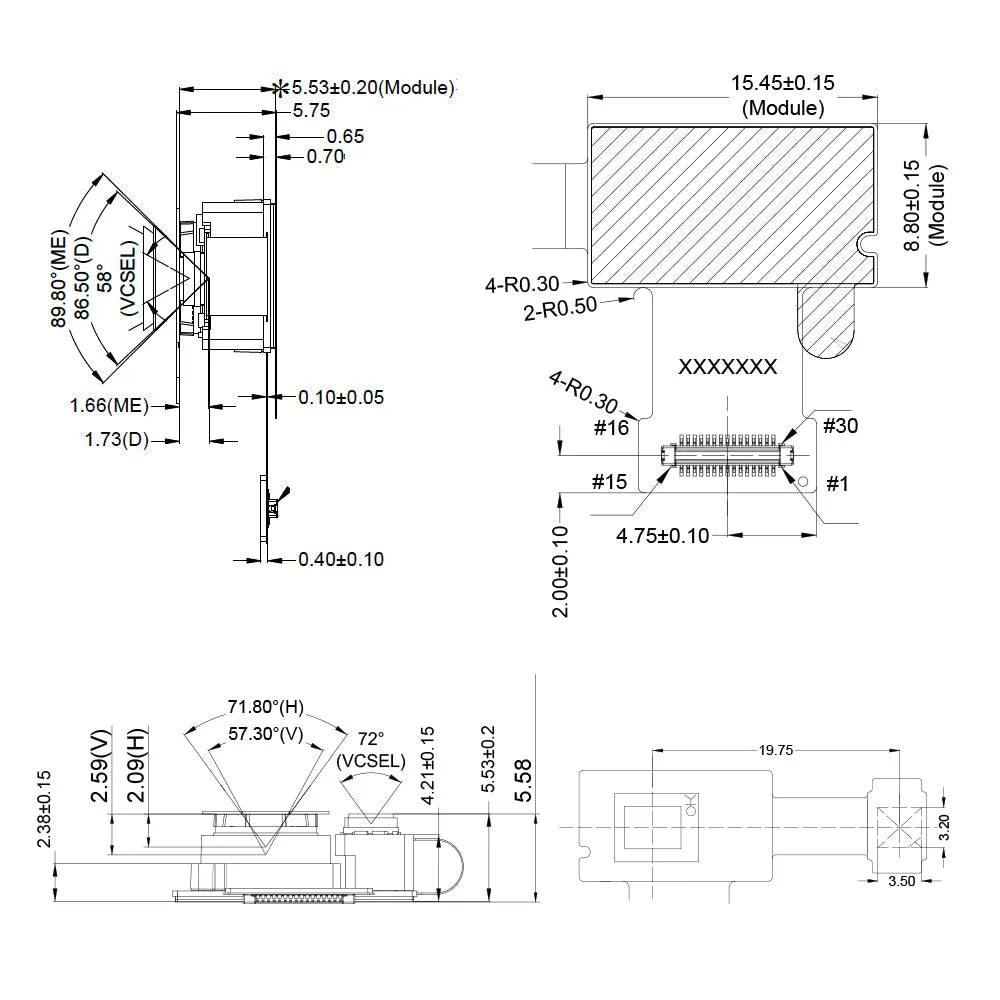

FOV	H71° x V58°（Receiver）

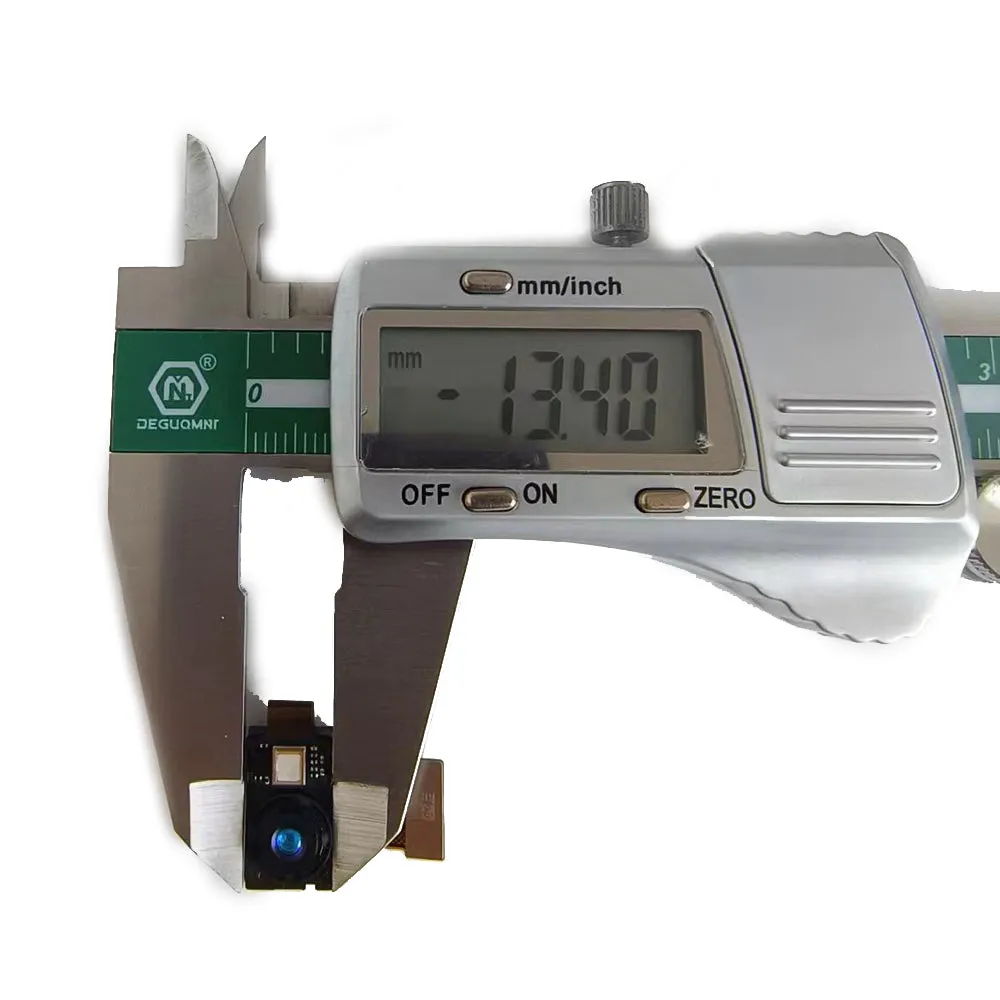

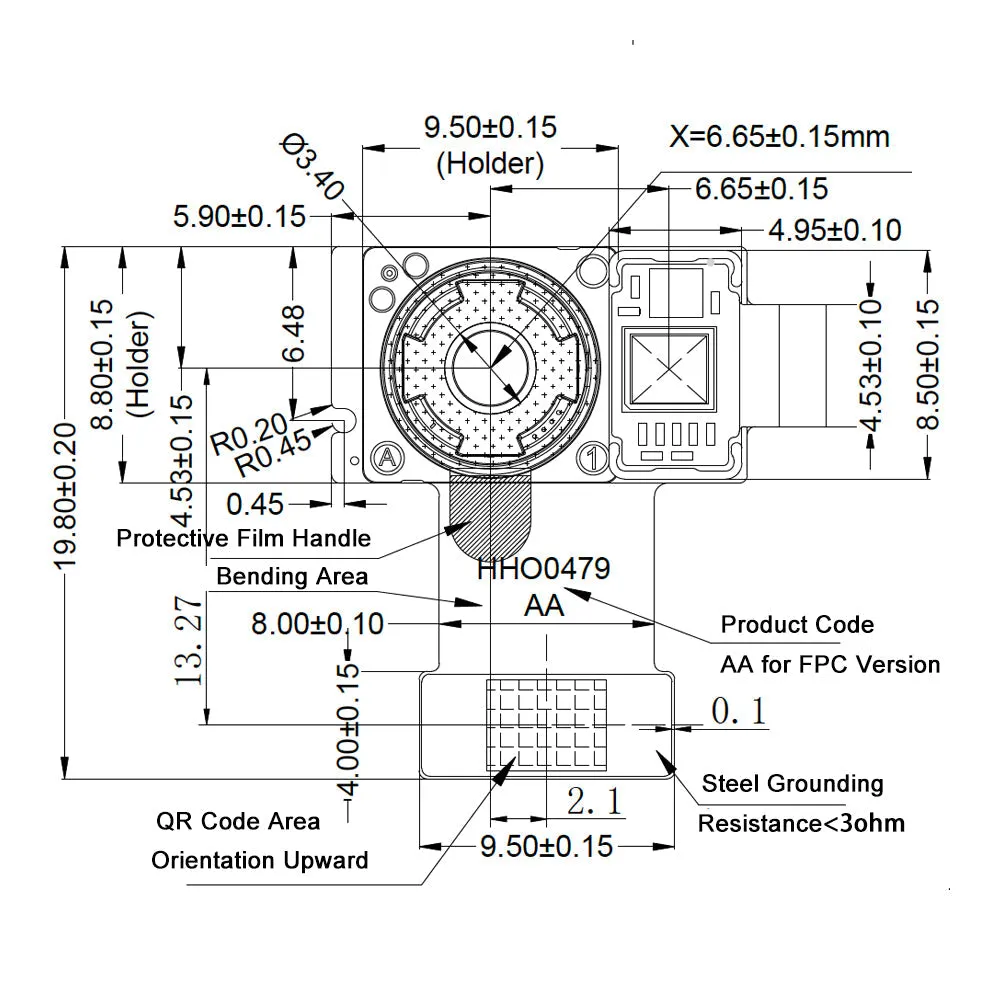

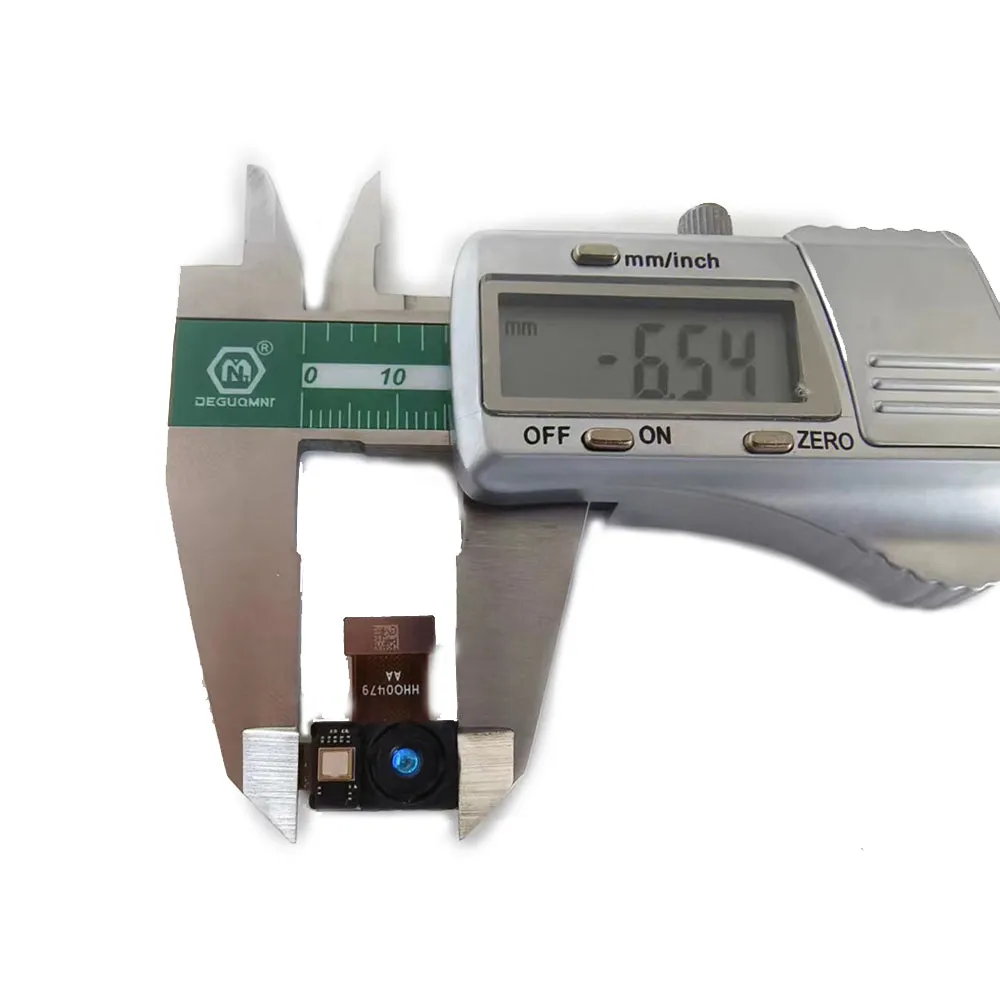

Size	48mm x 34mm x 12mm
Data transmission	USB 2.0 ，Type C Interface
Power supply	5V, 0.5A
Power consumption	Average power consumption   1.2W
Supported systems	Linux/Windows/ROS/Android/Python
Operating temperature	-10 ~ 50℃
Safety	Class 1
certification	CE ,FCC, CLASS 1, RoHS

Key Features:

1. High-Resolution Imaging: The CS20 MIPI boasts a high-resolution imaging capability, providing detailed depth information crucial for your projects.

2. Versatility in Applications: From gesture-based interactions to advanced Solid-state LiDAR applications, the CS20 MIPI adapts seamlessly to a diverse range of use cases.

3. MIPI Interface: Designed with a MIPI interface, the CS20 MIPI ensures efficient integration with MIPI-compatible devices, offering enhanced flexibility in connectivity.

4. Ease of Integration: Users can effortlessly integrate the CS20 MIPI into their processor boards, streamlining the development process and allowing for further customization.

5. Compact and Lightweight: The CS20 MIPI is designed for versatility, featuring a compact and lightweight form factor that facilitates easy integration into a variety of applications without compromising performance.

6. Low Power Consumption: With an emphasis on energy efficiency, the CS20 MIPI ToF sensor optimizes power consumption while maintaining exceptional performance, extending the lifespan of battery-powered devices.

Applications:

1. Gesture Recognition: The CS20 MIPI ToF sensor enables precise and responsive gesture recognition, making it ideal for interactive user interfaces in smart devices and appliances.

2. Augmented Reality (AR) and Virtual Reality (VR): Elevate AR and VR experiences with the CS20's advanced depth sensing capabilities, enhancing immersion and interaction in virtual environments.

3. Autonomous Vehicles: Enhance the perception capabilities of autonomous vehicles by integrating the CS20 for accurate obstacle detection and navigation in dynamic environments.

4. Medical Imaging: The sensor's precision makes it valuable in medical imaging applications, aiding in the development of non-invasive devices for diagnostics and treatment planning.

5. Industrial Automation: In industrial settings, the CS20 contributes to automation processes by providing accurate object detection, collision avoidance, and spatial awareness for robotic systems.

Elevate your projects with the CS20 MIPI, a cost-effective solution that combines high-quality imaging with MIPI interface technology. Explore new dimensions of innovation and propel your applications to unprecedented heights. Secure your CS20 MIPI now and embark on a journey of technological advancement.
